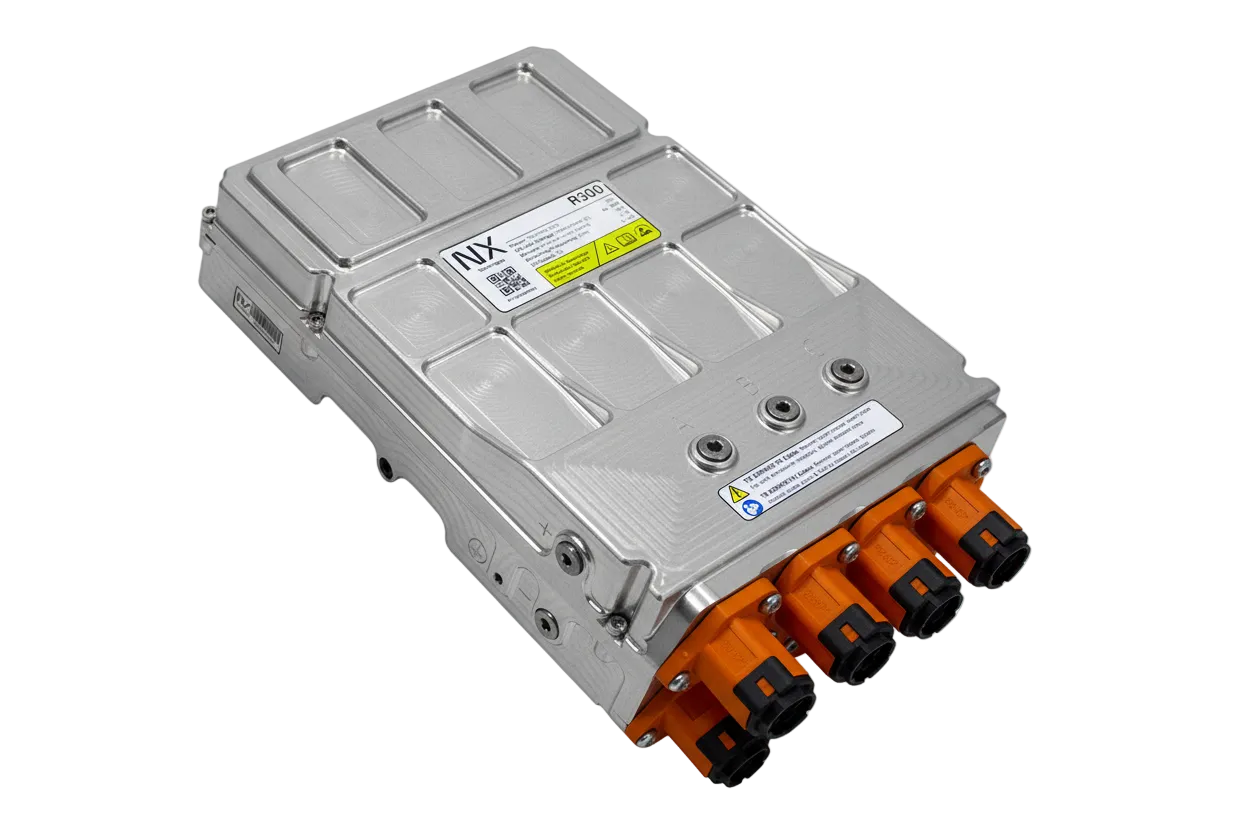

NX Technologies R300 High-Voltage Traction Inverter 300kW 800V for Heavy-Duty Vehicles
  • NX Technologies R300 High-Voltage Traction Inverter 300kW 800V for Heavy-Duty Vehicles
NX Tech R300 Traction Inverter - 800V 300kW

NX Tech R300 Traction Inverter - 800V 300kW
📩 Get a Volume Quote (5+ Units)

For bulk pricing, project integration, and custom lead times.

Download Technical Datasheet (PDF)

3D CAD models (STEP, DWG) are available upon request. Contact us to get the files.

High-Voltage Traction Inverter for 800V Heavy-Duty Mobility

The NX Technologies R300 is an ISO26262 ASIL-D capable and cybersecurity ISO21434 ready high-power-density traction inverter for 800V applications that delivers up to 300kW continuous power. Specifically designed for heavy-duty vehicle OEMs and system integrators, the R300 offers an exceptional power-to-weight ratio (300kW @ 6.7kg) and automotive-grade durability.

Technical Specifications (Verified R300 Data):

Feature Details
Model NX R300
Nominal DC Voltage 48V - 800V DC
Over Voltage Protection 870V DC
Peak Current 560A (Arms)
Continuous Power 300kW
Safety Compliance ISO26262 Compliant (ASIL-D Certified Microcontroller) & ISO21434 Ready
Environmental Protection IP67
Thermal Management Liquid Cooled (Integrated)
Weight 6.7 kg



⚡ System Synergy & Efficiency

Engineered for maximum efficiency, the R300 is equipped with a sixth gen. IGBT powerpack capable of up to 1200V/800A peak phase current. It delivers best-in-class efficiency and reduced harmonics with VarioSwitch technology, alongside reduced consumption via Deep Sleep and Wake-up modes. The application software enables sensors auto-calibration functions for position sensor types including Resolver, XMR, Absolut Encoder, Incremental Encoder, and BiSS. Sensorless control is also available with embedded position sensor redundancy.

🧠 Intelligence & Architecture (DeveLinkSTUDIO)

The R300 is powered by an ASIL D certified triple core microcontroller @300Mhz, offering superior system-level flexibility:

  • DeveLinkSTUDIO: A real-time software interface tool provided free of charge, allowing for effortless parameter calibration and VCU communication via 2x CAN channels.

    Advanced Control Dynamics: Provides precise Current, Torque and Speed Control, and utilizes DPWM to deliver maximum stall current at 0rpm.

  • Precision Monitoring: Features self-protection capabilities like OVP, OCP, and OTP, accompanied by speed and temperature derating. It supports temperature sensors including NTC (10k) and PTC series. Additionally, an interlock signal can be fed for additional safety.

🌟 Sourcing from Ekol Drive Systems

  • Authorized Partner: Genuine NX Technologies high-voltage components supplied directly via Ekol Engineering’s verified distribution network.

  • Global Trade Compliance: We manage all necessary documentation and legal export requirements for seamless global trade.

  • EXW (Ex Works) Terms: All sales are conducted on EXW terms. Goods are prepared and made available at our designated facilities for collection by your freight forwarder.

  • Commercial Support: Professional commercial invoices include official export declarations to ensure seamless and compliant global customs clearance.
