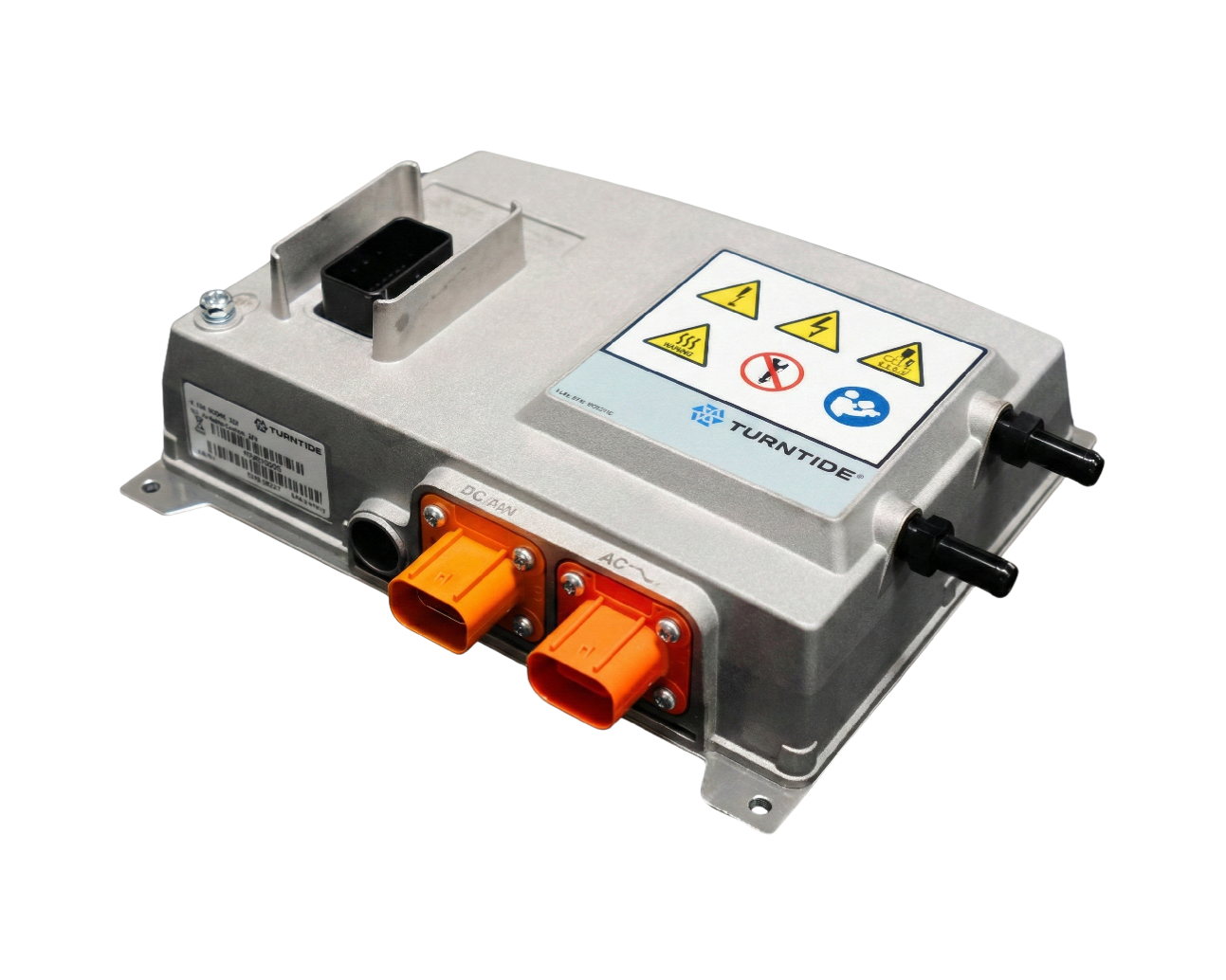

Turntide HVLP-20 High Voltage Auxiliary Inverter. 700V / 800V (53A Peak) Liquid Cooled Motor Controller. IP67 Waterproof, CANopen & J1939 Support. Heavy-duty auxiliary drive available at Ekol Engineering.
  • Turntide HVLP-20 High Voltage Auxiliary Inverter. 700V / 800V (53A Peak) Liquid Cooled Motor Controller. IP67 Waterproof, CANopen & J1939 Support. Heavy-duty auxiliary drive available at Ekol Engineering.
Sevcon HVLP-20 Auxiliary Inverter - 700V 22kW

Sevcon HVLP-20 Auxiliary Inverter - 700V 22kW
📩 Get a Volume Quote (5+ Units)

For bulk pricing, project integration, and custom lead times.

Download Technical Datasheet (PDF)

3D CAD models (STEP, DWG) are available upon request. Contact us to get the files.

High-Power Precision for Liquid-Cooled Auxiliary Systems

The Sevcon HVLP-20 is the high-capacity variant of the HVLP series, designed for demanding auxiliary loads in 800V electric vehicle architectures. Delivering up to 22kW of continuous power, this liquid-cooled inverter is the industry standard for driving heavy-duty air conditioning compressors, large hydraulic pumps, and thermal management systems in electric buses, trucks, and specialized industrial machinery.

Technical Specifications (Verified Data):

Feature Details
Part Number 634L20101 / 634L20202 Series
Operating Voltage Range 150V DC to 800V DC (Nominal: 700V DC)
Continuous Output Power Up to 22kW @ 700V DC (Liquid Cooled)
Peak Output Current 53A (Arms) for 60 seconds
Continuous Output Current 33A (Arms)
Logic Supply Voltage 12V or 24V nominal (8V - 36V range)
Environmental Protection IP66 Rated
Weight 5.3 kg



🛡️ Safety & Integration Note

  • High Voltage Safety: Operates at lethal voltages (up to 800V DC). Integrated HVIL (High Voltage Interlock Loop) circuitry is standard to ensure system-wide safety during maintenance and operation.

  • Control Intelligence: Features advanced Flux Vector Control for precise management of both AC Induction and Permanent Magnet (PMAC) motors.

  • Programming: Full parameter access and diagnostics require an IXXAT USB-to-CAN interface and DVT software.

💧 Critical Cooling & Performance Note

  • Liquid Cooling Requirement: To achieve its 22kW rating, the HVLP-20 requires an active liquid cooling circuit (typically a 50/50 water-glycol mix). Ensure a minimum flow rate of 6 L/min for optimal thermal performance and to prevent power derating.

  • Superior Power Density: Compared to the HVLP-10, the HVLP-20 doubles the power output within a similarly rugged footprint, making it ideal for high-duty cycle industrial applications.

🌟 Sourcing from Ekol Drive Systems

  • Authorized Partner: Genuine Sevcon liquid-cooled technology supplied via Ekol Engineering’s official distribution network.

  • Global Export Authority: Approved by UK Strategic Export Controls for international trade, ensuring all EUSU/SU documentation is handled with 100% legal compliance.

  • EXW (Ex Works) Terms: All sales are conducted on EXW terms from our UK facility.

  • Seamless Customs Support: Commercial invoices include official export license declarations for fast and reliable global customs clearance.
