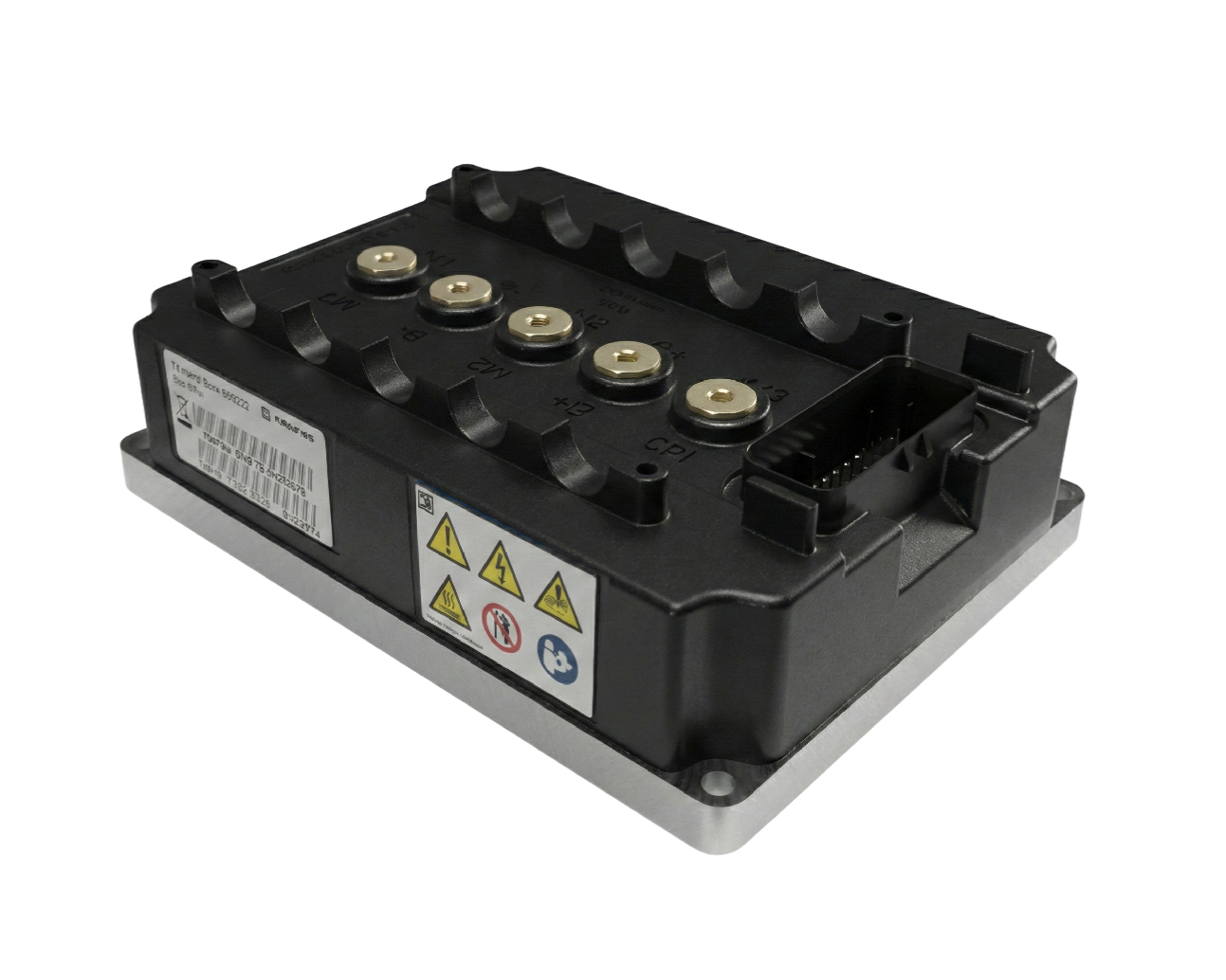

Turntide Gen6 Size 6-S Low Voltage Traction Inverter - 48V 650A

Next-Generation Propulsion: 35kW Peak Performance in an Ultra-Compact 1.9kg Frame

The Turntide Gen6-S (Standard) is not just an inverter; it is a technological breakthrough. Claiming one of the highest power densities in the global market, it delivers automotive-grade performance in an incredibly small footprint. Designed for high-end industrial EVs and performance mobility, the Gen6-S combines brute force with high-level intelligence through its physics-based control architecture.

Technical Specifications (Verified Gen6-S 48V Data):

🛡️ Safety & Protection Note: This unit supports an Optional Finger Guard. Adding this top cover ensures IPXXB compliance, providing essential protection around the terminals and a clean, professional finish for your high-power assembly.

🧠 The Intelligence Revolution: Turntide User Code (TUC)

Gen6-S brings a new level of customization in low-voltage systems:

• Custom Logic (TUC): An ANSI C based development environment that lets you run your own algorithms and custom logic directly on the inverter’s secondary 80MHz processor.

• Physics-Based Control: Advanced torque modulation including Hill-hold, Anti-jerk, and Active Damping for a superior vehicle "feel."

• Auto-Characterization: Features an intelligent self-learning algorithm that can automatically identify and optimize parameters for any IPM, SPM, or IM motor.

⚡ System Synergy: The High-Torque Solution

Pair this intelligence with our high-torque industry benchmark for maximum gradeability Electrified Motors 193-80-10A+ 48V. This setup is pre-configured to deliver 140Nm of peak torque with seamless synergy straight out of the box.

🔍 Architecture Note: Gen6-S vs. Gen6-X

The Gen6-S (Standard) series is optimized for systems utilizing a common ground architecture:

• Integrated Logic: Does not feature galvanic isolation between the logic and power stages, resulting in a lighter and more compact unit (1.9kg).

• Application Note: Best suited for high-volume, cost-sensitive industrial platforms. For applications requiring full galvanic isolation, please refer to the Gen6-X series.

🌟 Sourcing from Ekol Drive Systems

• Authorized Partner: Genuine Turntide products supplied directly via Ekol Engineering’s UK-based distribution network.

• EXW (Ex Works) Terms: All sales are conducted on EXW terms. Goods are prepared at our UK facility for collection by your designated freight forwarder.

• Commercial Support: Invoices include all necessary export declarations to ensure compliant customs clearance.
