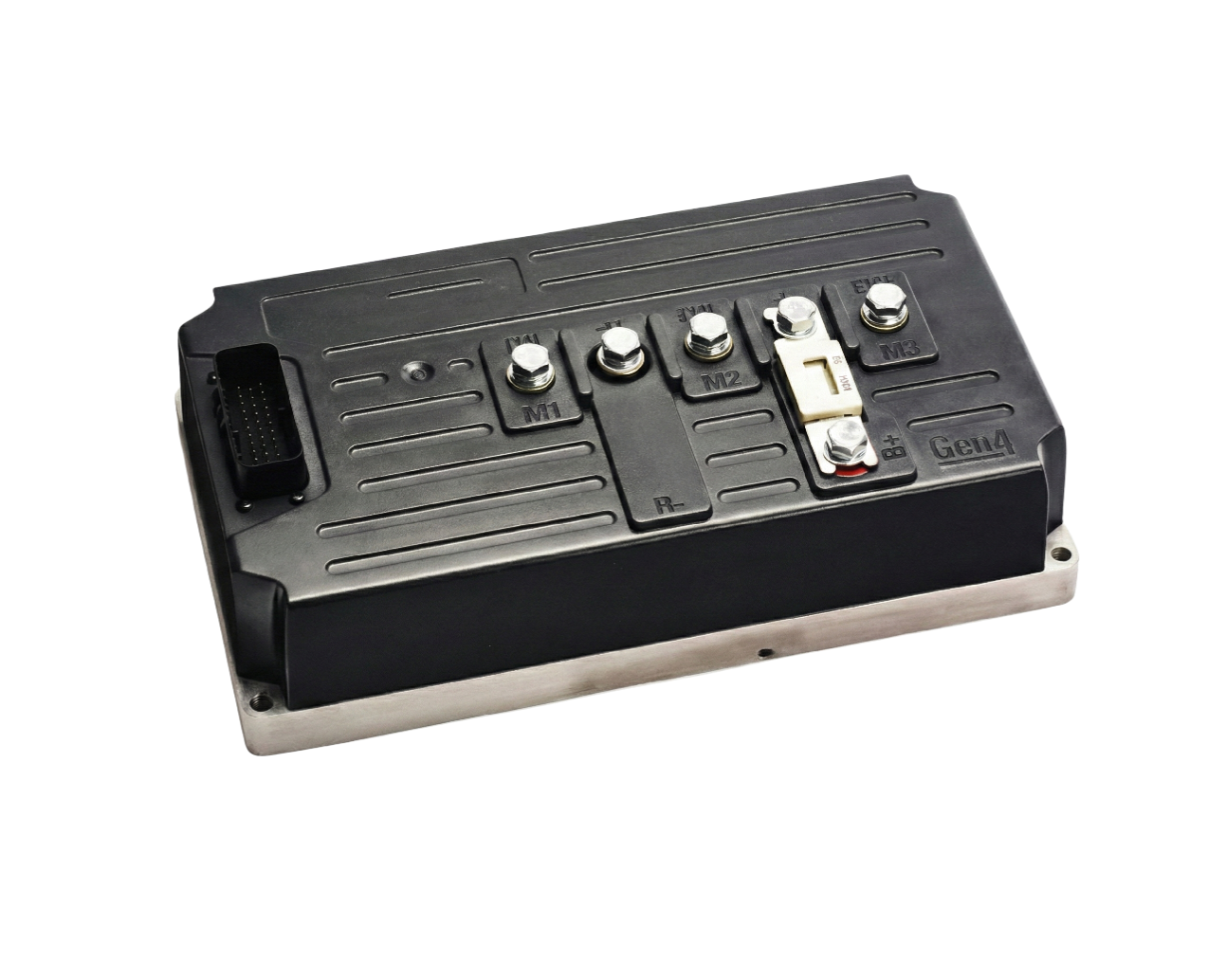

Turntide Gen4 Size 6 AC Motor Controller (Sevcon Gen4 Compatible). 48V (650A) / 80V (550A) High Power Inverter for heavy-duty EV conversions. IP66 Waterproof, CANopen support. Available at Ekol Engineering.
  • Turntide Gen4 Size 6 AC Motor Controller (Sevcon Gen4 Compatible). 48V (650A) / 80V (550A) High Power Inverter for heavy-duty EV conversions. IP66 Waterproof, CANopen support. Available at Ekol Engineering.
Sevcon Gen4 Size 6 Motor Controller - 80V 550A

Sevcon Gen4 Size 6 Motor Controller - 80V 550A
📩 Get a Volume Quote (5+ Units)

For bulk pricing, project integration, and custom lead times.

Download Technical Datasheet (PDF)

3D CAD models (STEP, DWG) are available upon request. Contact us to get the files.

The Global Gold Standard for High-Voltage & Heavy-Duty Control

The Sevcon Gen4 Size 6 (80V) is the definitive industry benchmark for high-output electric vehicle motor control in high-voltage architectures. Engineered for extreme power density and precise torque control, this 550A variant is specifically designed for the most demanding heavy-duty electric traction systems, including large forklifts, tow tractors, and industrial EV platforms.

Technical Specifications (Verified Data):

Feature Details
Part Number 634A85203
Nominal Battery Voltage 72V - 80V DC (Range: 39.1V – 116V)
Peak Current (2 min) 550A (Arms)
Boost Current (10 sec) 660A (Arms)
Continuous Current (60 min) 220A (Arms)
Environmental Protection IP66 Rated (Dust-tight & Protected against powerful water jets)
Communication Dual CANopen Ports (CAN 2.0B)
Weight 4.65 kg - 5.3 kg
Dimensions 305mm x 170mm x 86mm



⚡ System Synergy: The Perfect Match

To achieve maximum energy efficiency and extreme torque response, this controller is optimized for the Electrified Motors 193-80-10A+ 80V. Together, they deliver a high-performance power solution with pre-configured torque curves tailored for heavy payload 80V drivetrains.

🛠️ Professional Programming Advisory

To unlock the full potential of the Gen4 architecture and ensure successful motor characterization, the following professional tools are required:

  • Hardware Interface: Only the IXXAT USB-to-CAN V2 is officially supported for stable communication.

  • Software Ecosystem: Requires DVT (Design Verification Tool) for parameter tuning, diagnostics, and firmware updates.

  • Support Package: Ekol Engineering provides all essential manuals and ready-to-use commissioning files (.dcf) for our matched motor configurations.

🌟 Why Source from Ekol Drive Systems?

  • Authorized Global Stockist: Supplied by Ekol Engineering, an authorized partner with a Strategic Stockist Undertaking (SU).

  • High-Volume Export Authorization: Fully approved by UK Strategic Export Controls for an annual distribution capacity of up to 3,800 units, ensuring long-term supply stability for large-scale industrial projects.

  • EXW (Ex Works) Terms: All sales are conducted on EXW terms. Goods are prepared and made available at our United Kingdom facility for collection.

  • Seamless Customs & Compliance: Our commercial invoices include the official export license declarations required for smooth clearance through UK Customs. Your designated freight forwarder can manage the legal export process with full confidence.
